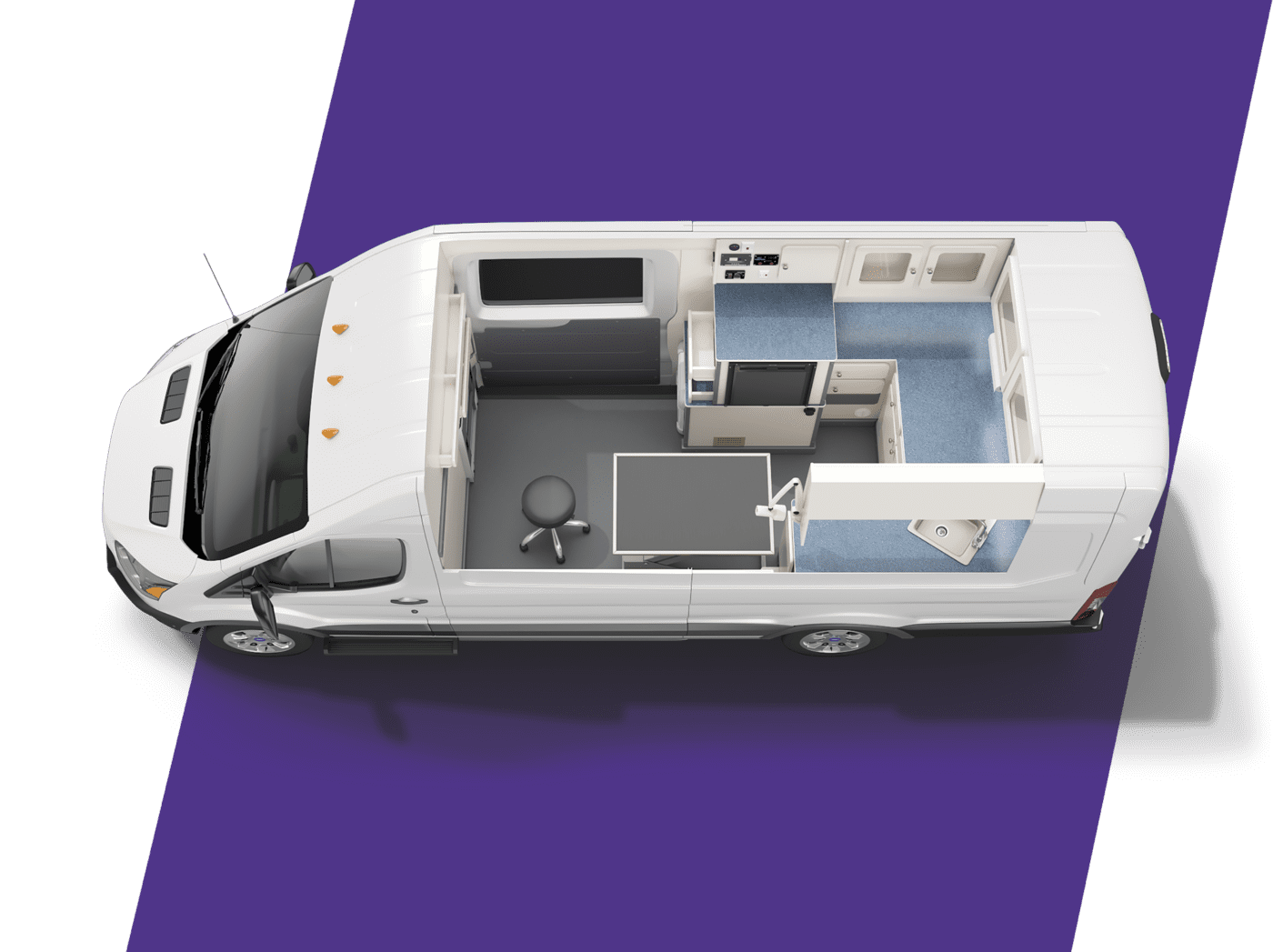

Dyna Well Pet Vet

• Owner/Operator Manual – complete instructions on the use of your clinic.
• 5 Year/60,000 mile Conversion Warranty – unmatched in the industry.
• Dedicated customer service staff – technical, parts and warranty support.
• Financing – Assistance in obtaining financing for your vehicle.

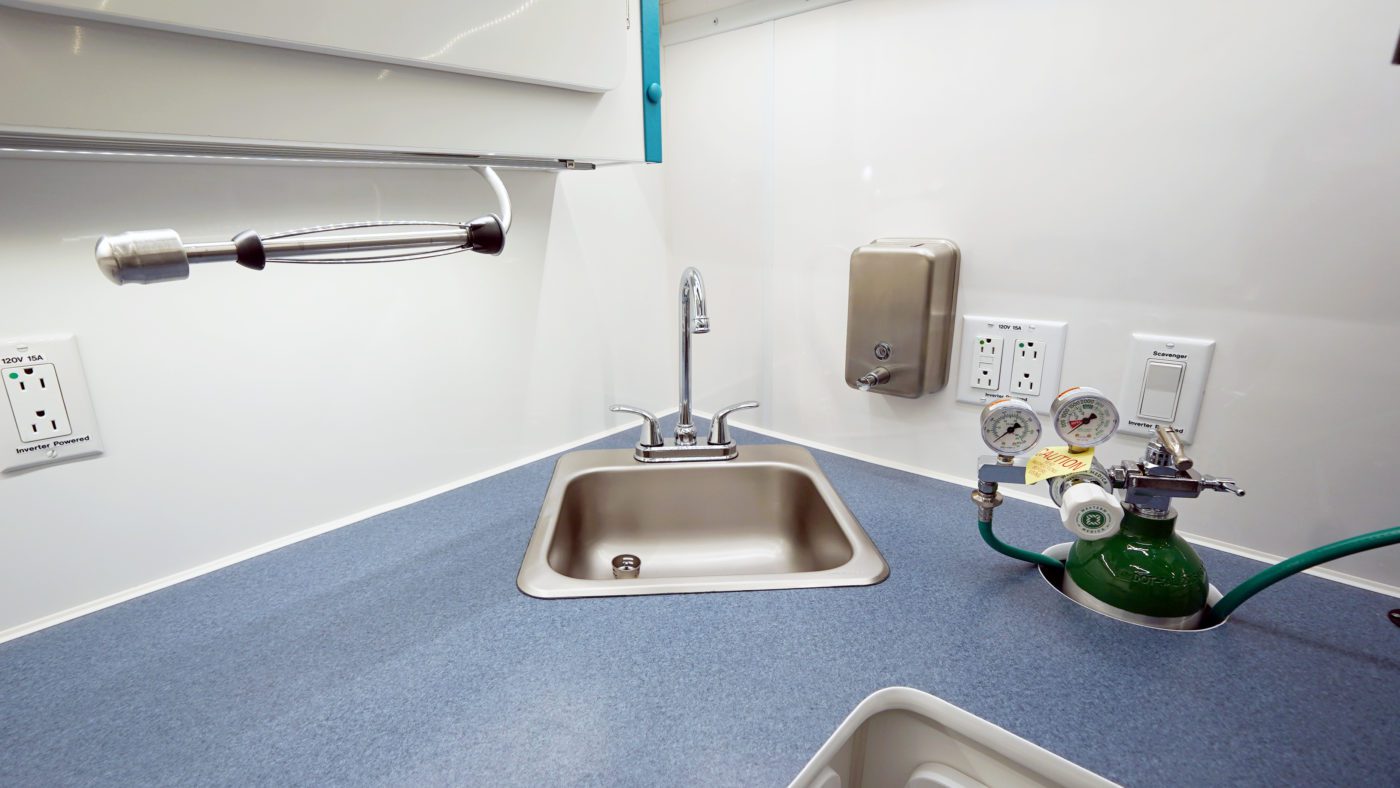

• Stainless Steel Sink – high spout faucet for convenience.
• Easy Fill Water Tank – carry all the fresh water you’ll need for the day and the oversized dirty water tank keeps your footprint clean.
• Easy Disconnect Water Lines – no special tools or adhesives for repairs if needed. Wide open access for plumbing lines.
• Gate Valve Tank Drain System – draining your dirty water is quick and easy. Collapsible 20’ drain hose included.
• Six Gallon LP / Electric Water Heater – electronic starter with the flip of a switch. Electric element is a backup so you will always have hot water.
• 7.9 Gallon LP Tank – externally mounted for quick refill at your local facility. High capacity makes refills few and far between.

• Onan 7000 EFI Commercial Generator — 2 year/2000 hour/5-year drive belt limited warranty provides 58.3 amps of consistent power; enough power to operate all appliances in your clinic—all at the same time if necessary! Most importantly, you are completely self-contained.
• 2000W Inverter with AGM Batteries — This combination makes one of the most fuel efficient veterinary vehicles on the market.
• 110 Volt Electrical Service with Hospital Grade GFCI Protection — Safety in the clinic area and with 20 outlet receptacles you will never be looking for a place to plug in that additional appliance.
• Shore Line Power Cord Connection — input for use as a backup electrical source if needed.
• LP, Water Tanks and Battery Monitoring Panel — check fresh water, dirty water, LP gas, and battery charge levels with the touch of a button.

• Easy to maneuver — No special driver license needed.

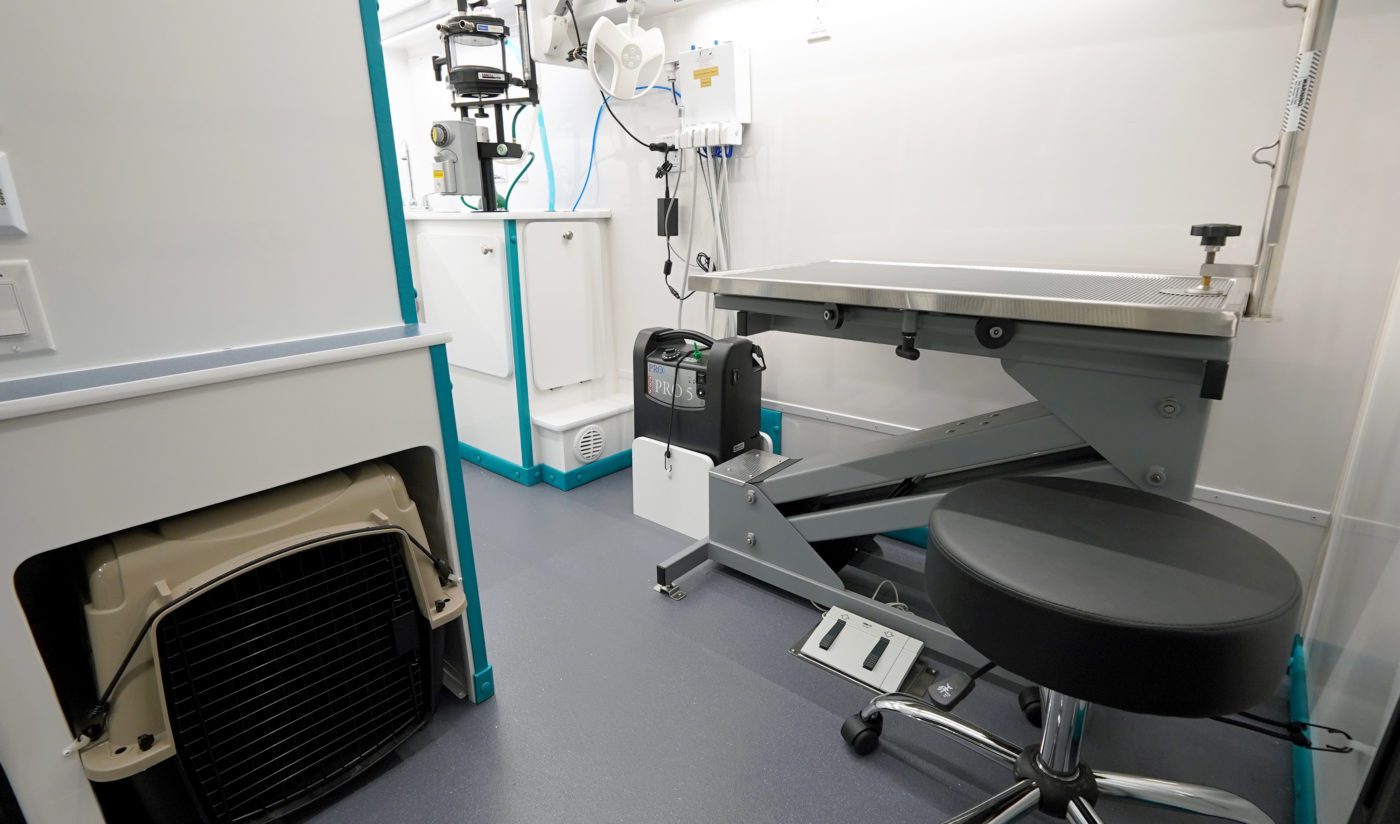

• Electric Examination Table — lowers to 18″ and rises to 42″. The 24”X37” top with extension has space for the largest of pets.

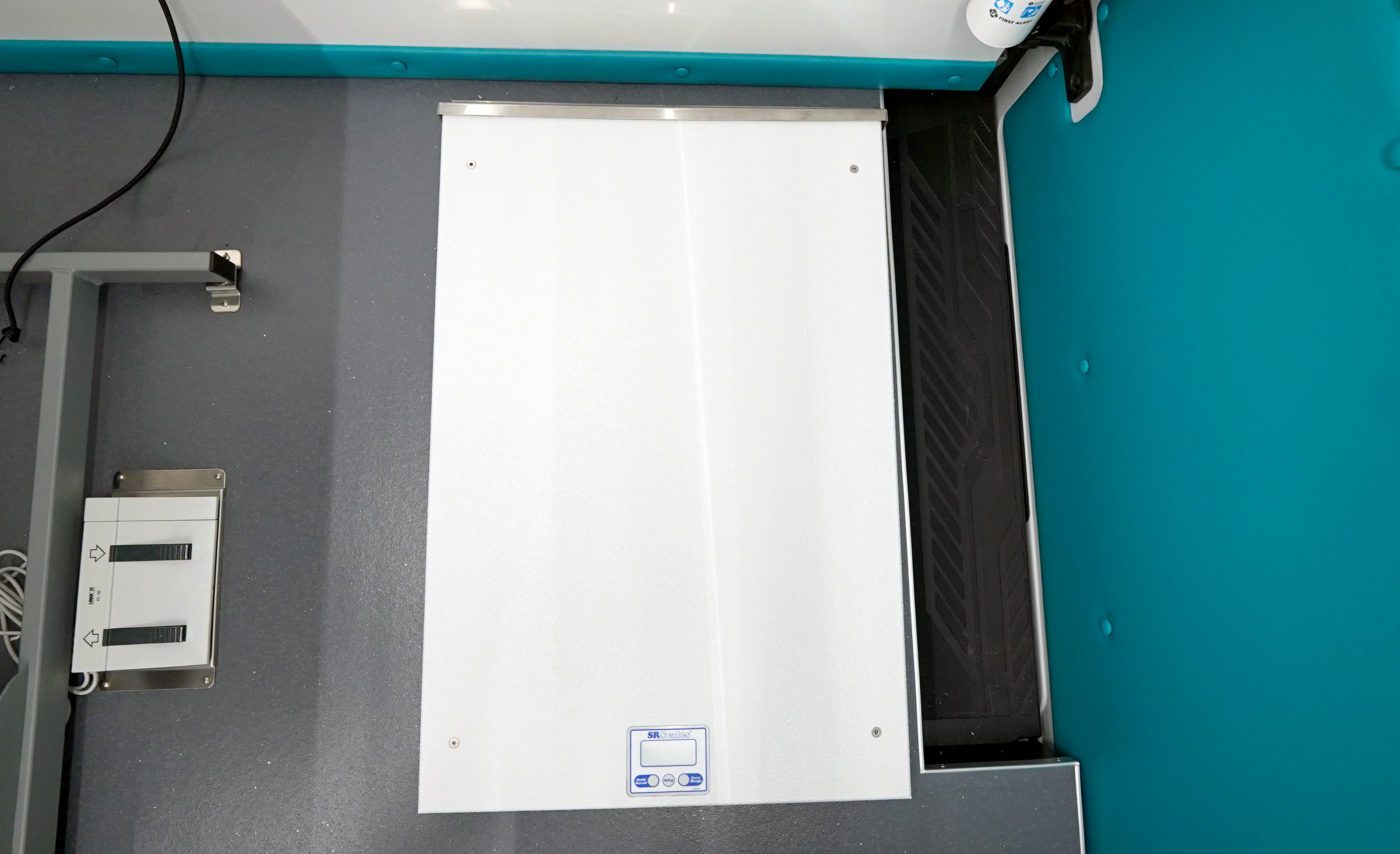

• Digital Pet Scale — High capacity, easy to read digital display is very accurate.

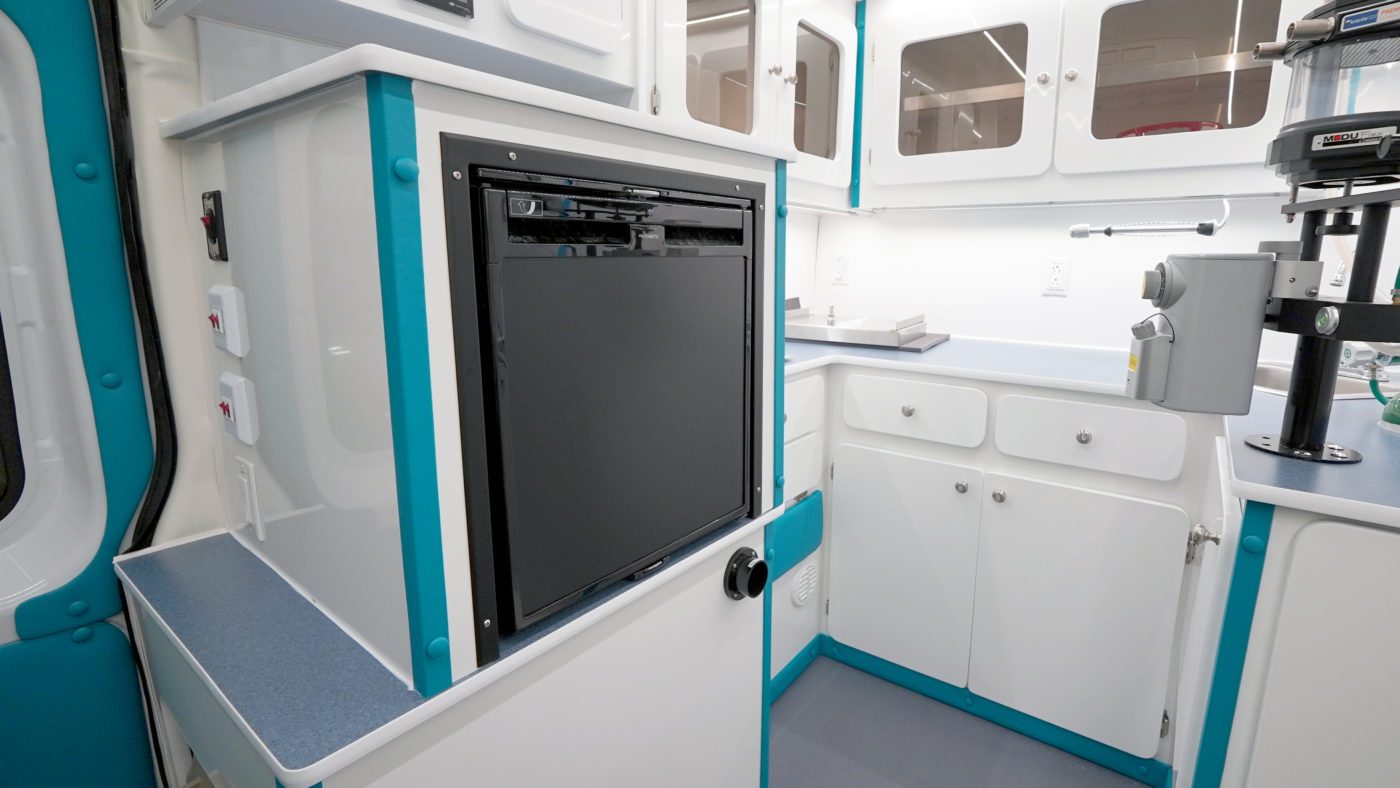

• Norcold 2.7 cubic foot AC/DC Refrigerator — keep pharmaceuticals at the proper temperature.
• Commercial Central Vacuum System — keep the clinic clean with this commercial grade wet/dry vacuum system.
• Marine grade vinyl interior accents — this vinyl will not absorb moisture and gives your clinic personality and a professional appeal.
• Exam stool — swivel top with casters and adjustable height provides a stable platform and reduces fatigue.

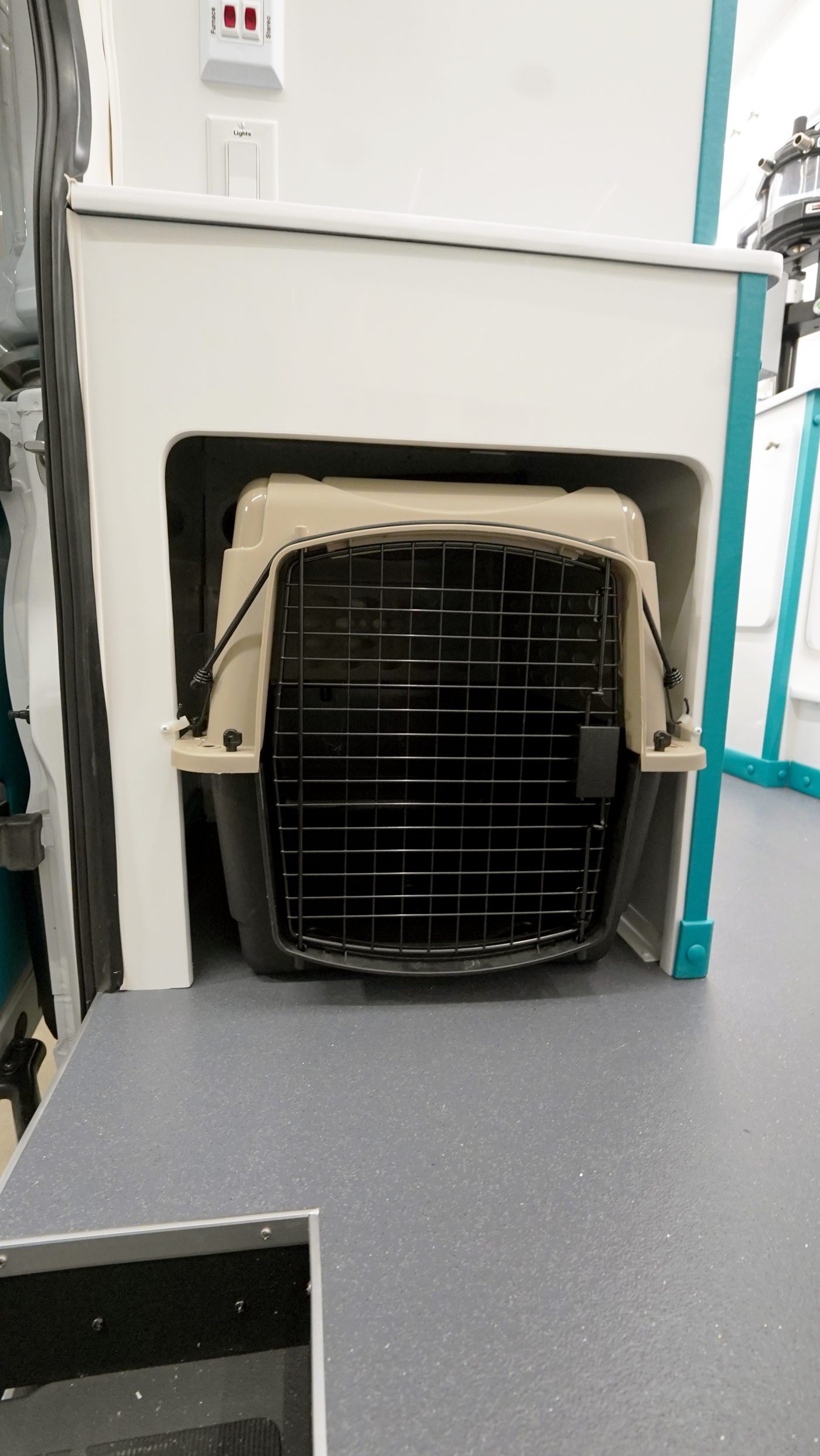

• Pet recovery Compartment — Completely removable for transport and easy cleaning.

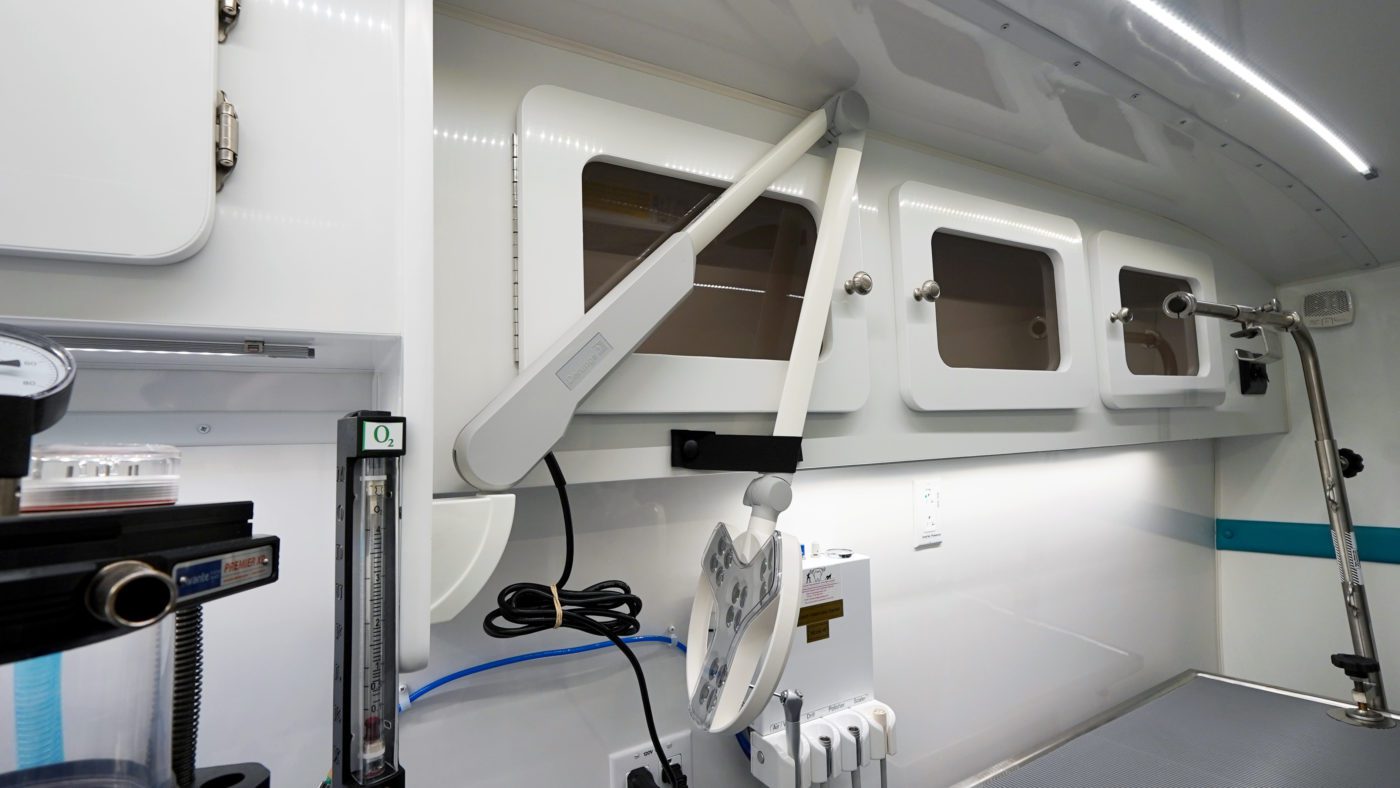

• Exam Light — flood/spot combination with articulating arm provides all the light you need right where you need it.
• LED Lighting — Amazingly bright lighting overhead with Lexan covers to provide excellent lighting for the most complicated procedure.
• Tinted Window — provide ambient light while you work. Tinting reduces heat transfer while allowing you a view of the outside world.
• 12V Access Lights — in the cab, clinic and rear storage room provide auxiliary illumination.
• Exterior utility light — Illuminates utility area connections and exterior for use after dark.

• 20,000 BTU Furnace — powerful heating system for cold days.
• 15,000 BTU Air Conditioner — the power of this air conditioner will keep you comfortable in the harshest of climates.
• Overhead Power Vent — our bi-directional 3 speed ducted fan provides excellent ventilation.

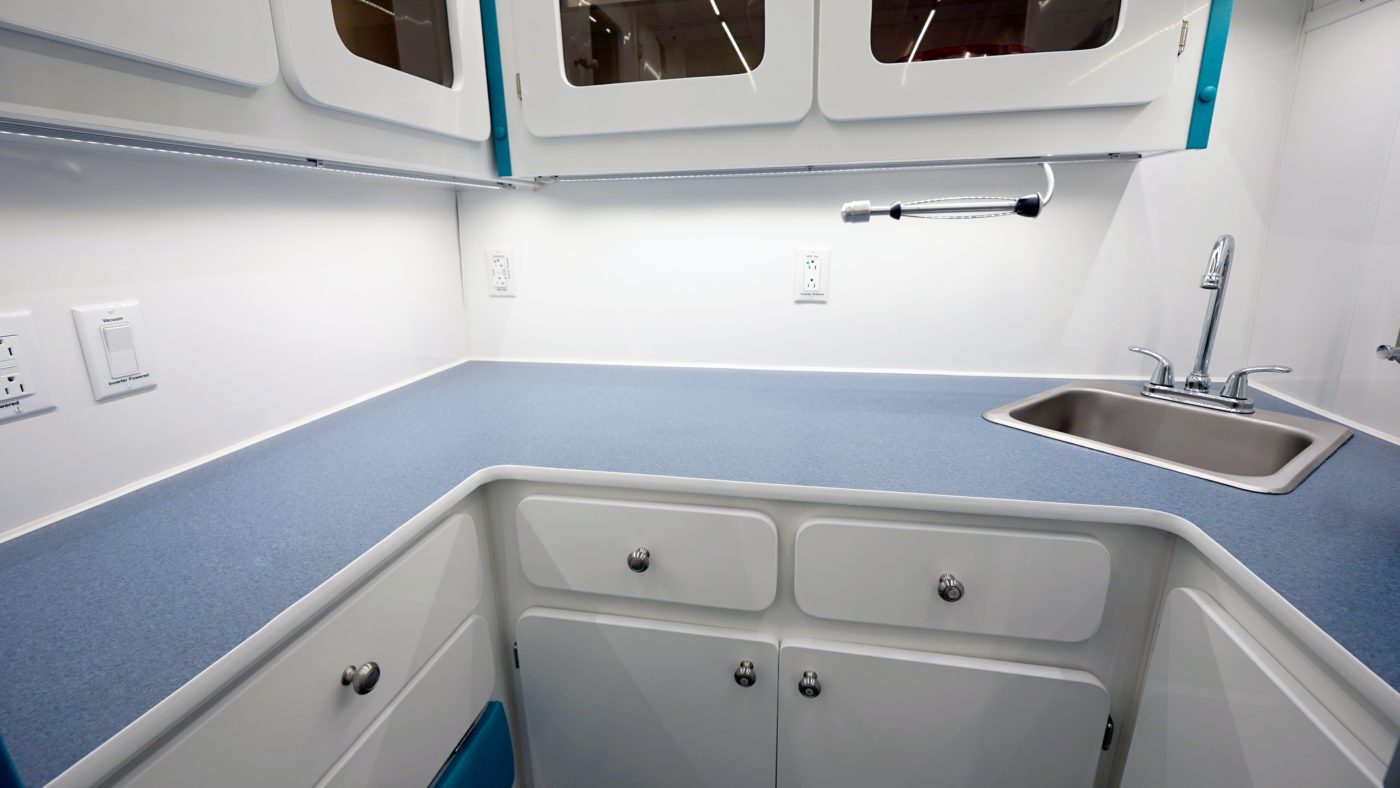

• Plenty of laboratory counter space — room for your microscope, centrifuge and more.
• Spacious side mounted overhead cabinets — Sure Shut doors keep everything within easy reach and securely inside the cabinets while driving.
• Large over counter storage — larger supplies fit easily and Lexan windows make contents easy to find
• Large drawers with Posi-Lock Latches — easily accommodates a laptop, client files, etc. and keeps the contents safe while traveling.
• Stealthy controlled substances drawer — locking drawer hidden behind a benign looking vinyl flip cover.
• Giant rear storage compartment — will hold all the large items you may need. If you need it, bring it!

• Safety Bulkhead Wall — separates the cab from your examination area. You’re safer while driving with a bulkhead wall protecting the cab area.
• Assist Handles — easy clinic ingress/egress.
• Fire Extinguisher — easily within reach if needed.
• Reverse gear selected signal — alerts those around you that the van is backing up.
• Ground Fault Interrupt Circuits — Hospital grade outlets standard safety code protocol for working near water.

• Commercial Grade Flooring — with a 12 year warranty, our flooring is designed for a brutal work environment. Chemical resistant, slip resistant and heat resistant. A bacteriostat incorporated into it gives the surface excellent odor and mildew control.
• Commercial Grade Sub Floor — also with a 12 year warranty, it is specifically made for heavy duty commercial work environments.
• High-Gloss Formica Walls, Trim and Bulkhead — easy to clean and will look like new for years. The white Formica reflects the light for optimum visibility.
• Doors and Walls — insulated with R-11 Ecobat fiberglass insulation to maximize heating/cooling efficiency.
• Wide Step Running Boards — gives your clinic a great look and allows easy, safe access.

Conversion Vehicle Weight (CVW) — 9038 lbs. (est.)

Gross Vehicle Weight Rating (GVWR) — 10,360 lbs.

Outside height — 10’ 4” to Top of AC Unit

Outside length — 22’ Bumper to Bumper

Outside width — 8′ with Mirrors Extended

Inside height — 6′ 6″ Floor to Ceiling

Inside length — 13 ‘3″ From Rear of Seats

Inside width — 6′ Wall to Wall at Floor

Inside sq. ft. — 67.98′

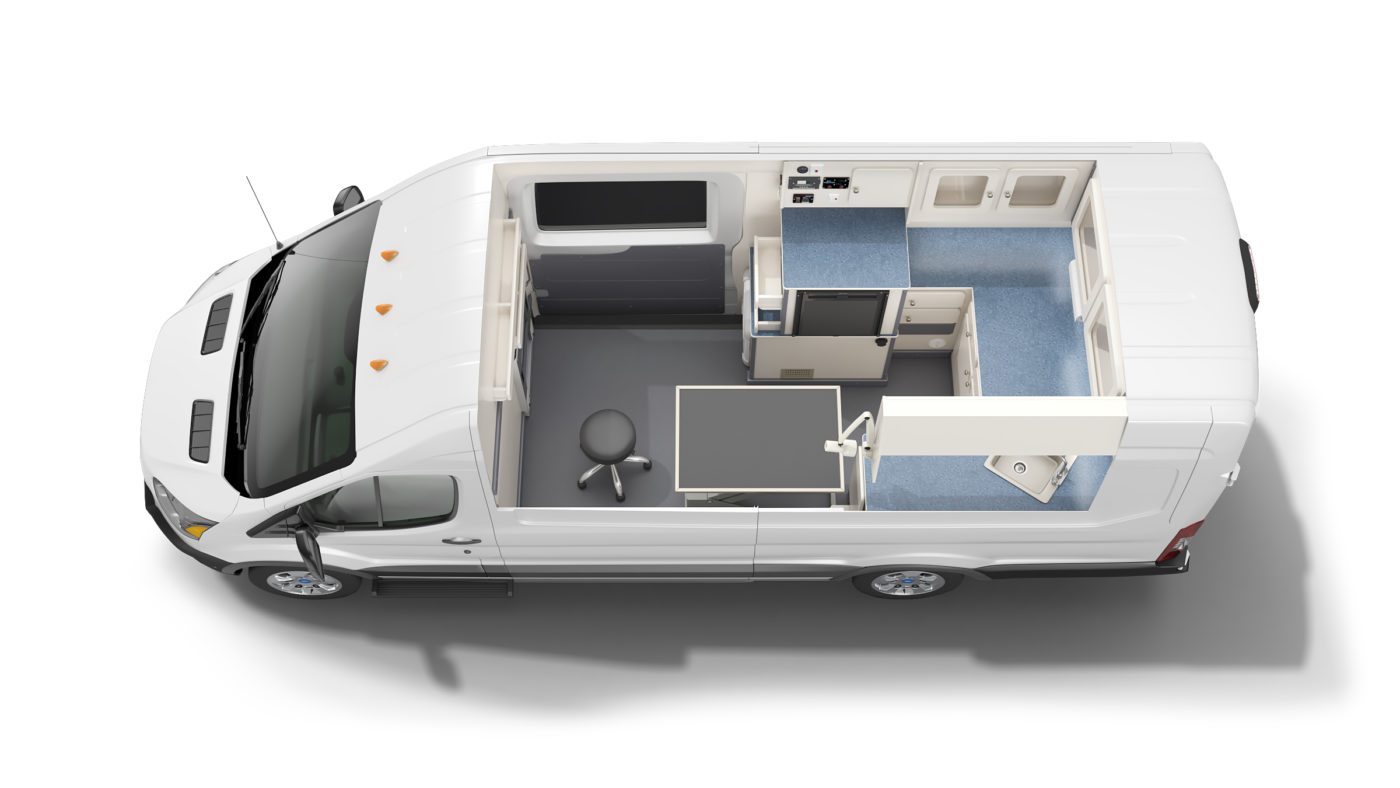

Ford Transit High Roof Van and Standard Conversion

STANDARD FORD TRANSIT 350 VAN EQUIPMENT

• Ford Pre-Collision Assist with Auto Emergency Braking
• 10 Speed Automatic Transmission
• Auto High Beam Headlamps
• Bluetooth Phone Steering Wheel Controls
• Forward Collision Warning
• AM/FM Stereo w/ Clock
• Dual Rear Wheels
• Back Up Camera
• 25 Gallon Fuel Tank

OPTIONAL FORD TRANSIT 350 VAN EQUIPMENT (INCLUDED IN PRICE BELOW)

• 3.5L EcoBoost Turbo Engine
• Vinyl Bucket Seats
• Chrome Grille
• Upgraded Wheel Covers
• Right Sliding Salon Door w/ Window

Base Pricing for 2022 Ford Transit Cargo Van and Standard Veterinary Conversion

2024 Ford Transit 350 High Roof Van: $59,800.00*

Standard Clinic Conversion: $63,567.00

Total Base Price $123,367.00

Graphics Consulting/Materials/Application Work with our in-house design team to brand your mobile practice.

$2,400.00

Anesthesia Package Custom Millenium Gen III Anesthesia machine with mayo tray and Penlon Vaporizer, ProO2 5l oxygen concentrator, gas evacuation system, spare O2 tank, regulator, electrical, plumbing, hoses, anesthesia accessories kit and installation.

$7,592.00

Standard DR xRay  2.8kw xRay generator with 17×17 tethered panel, acquisition software, carrying case, panel case, laptop, custom mounting solution and manufacturer support package.

$28,480.00

Portable Wireless DR xRay 2kw battery powered generator with 14×17 wireless panel, acquisition software, carrying case, panel case, rugged laptop, custom mounting solution and manufacturer support package.

$32,730.00

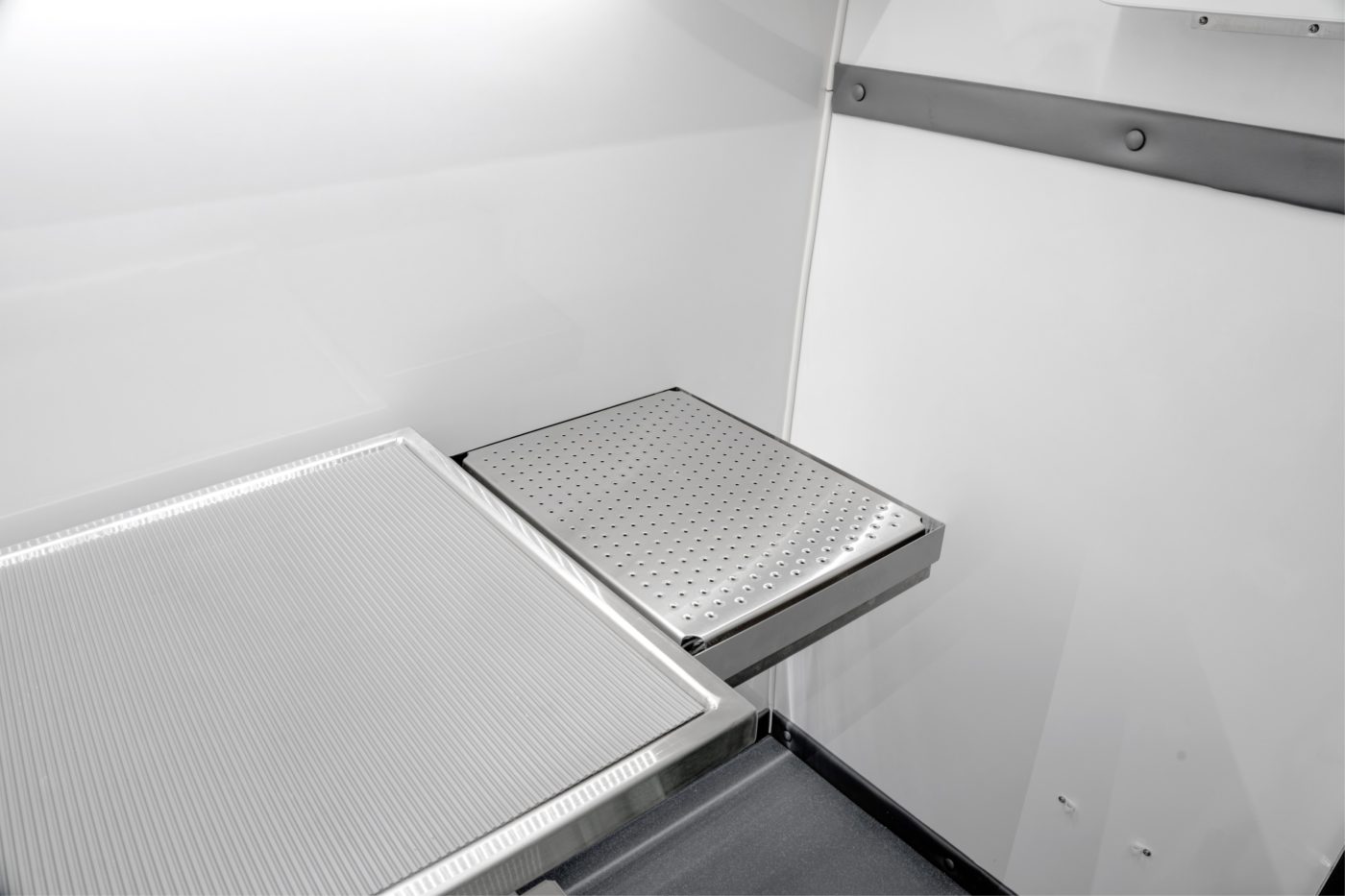

Wall Mounted Dental Package Ultrasonic Scaler, High Speed Drill, Low Speed Handpiece, air/water syringe, quiet remote compressor, remote bottle supply, and stainless steel wet table extension for exam table.

$3,589.00

Premium Spare Parts Kit –Includes: Flojet 3.5 GPM Water Pump, Water Filter Screens, K9-II Filter, Spray Handle, Screen for Vent Fan, 30-Amp Shore Power Inlet, Water Heater Anode Rod, 3″ Drain Cap w/Strap, Furnace Thermostat, Chrome Fresh Water Fill

$373.00

Medical Equipment Available
Call for Pricing

Accu-Scope LED 3000 Quad Objective Microscope

Drucker Truebond Centrifuge

Tuttnauer 1730 ValueKlave

Tuttnauer T-Top 10S Autoclave

Portable Scale

8” Multiparameter Surgery Monitor

Handheld Portable Dental xRay

Handheld Portable Ultrasound

All information is subject to change without notice.

Wag’n Tails CleanPower System™ – 1,200-amp-hour lithium battery pack with internal heater, remote monitor display, upgraded 15,000 BTU rooftop air conditioner, dual 3000W inverters, solar panels on roof, variable speed K9II Dryer and additional electric heater in rear area. Onan Generator not included with Wag’n Tails CleanPower System option. K9 Fluffer option not available with CleanPower System. (Access to power outlet required for nightly charging when not in use).

For more details go to www.wagntails.com/CleanPowerSystem

Insulated Window Shade Kit – These sunshades offer effective insulation by blocking UV rays and radiant heat. Includes shades for window and pass thru door to cab.

Premium Rear Stereo System with AM/FM/MP3/Bluetooth – Listen to your music while you work with this premium sound system. This system is built into your custom cabinet for a clean and professional look.

Anti-Freeze System – The Anti-Freeze System and 12V heating pad under the water tanks help protect plumbing against freezing in cold climates. Non-toxic RV anti-freeze is used with this pet friendly system.

Additional Three-Speed Overhead Vent/Deluxe Vent Cover – This additional overhead vent fan adds to the ventilation on humid days. You can never have too much ventilation.

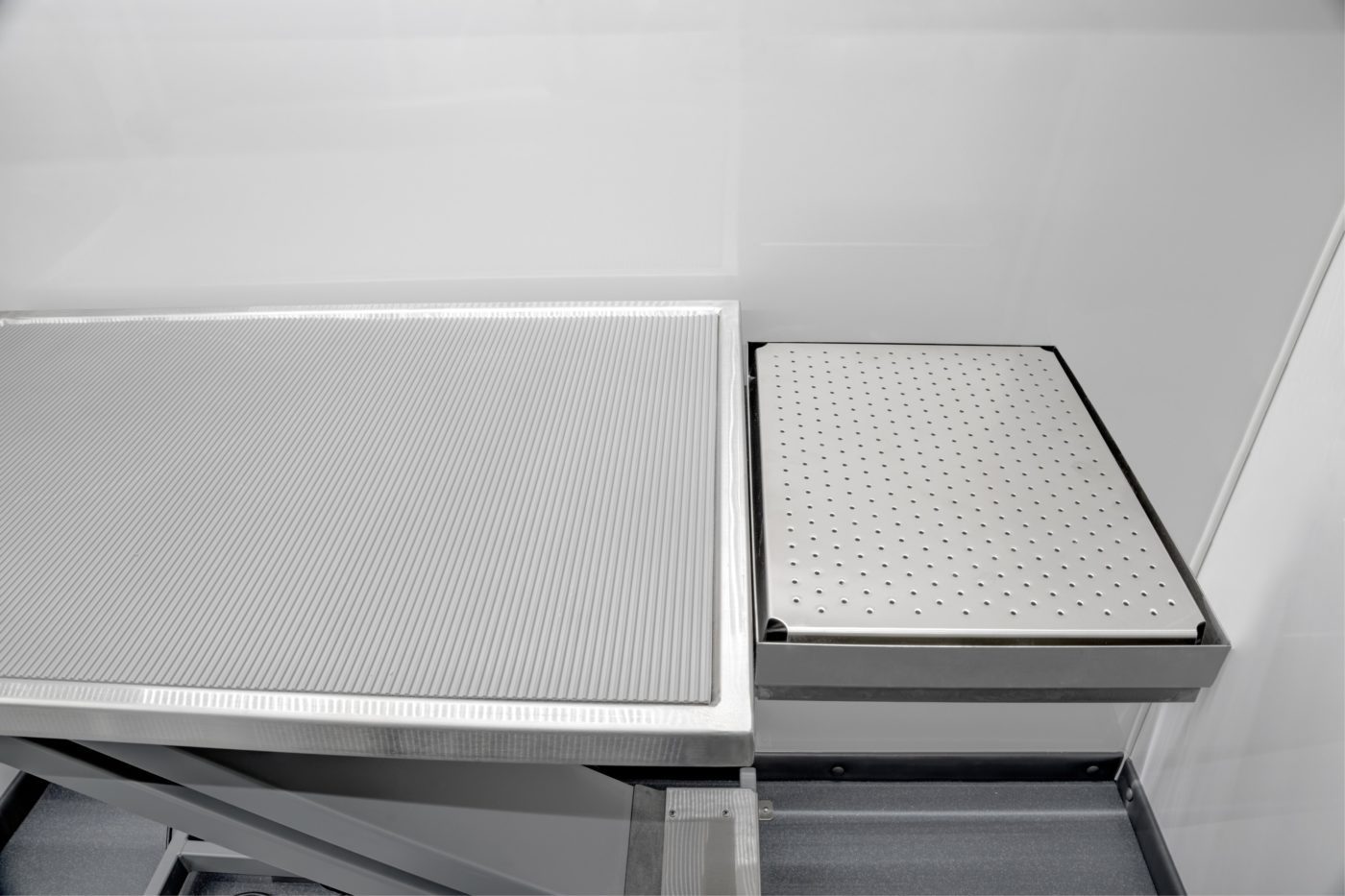

Stainless Steel Rotating Lift Table with Built in Scale.

50,000 Lux Dimmable LED Exam Light with 3 Color Temperature Options

15,000 BTU Air Conditioner
